Hekim Profil

C Plus Profile

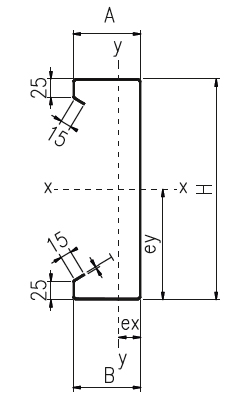

CPlus Profile Section

  • H Height
  • A Upper flange height
  • B Lower flange height
  • T Thickness

c-plus-profil

  • (mm)
  • H 100-400
  • A 85-100
  • B 85-100
  • T 1.00-4.00

c-plus

C Plus Profiles are produced in the requested sizes and measures by carrying out perforation and burr-free cutting in the requested measures and axises and inkjet marking on profiles on superior technology production lines, according to the project details and with personal packaging for persons and companies. All points on the profiles can be perforated by means of 3-D drawings of profiles downloaded to our computer controlled, fully automatic and high capacity machines. They can be produced in max. length of 16000 mm, max. 4,00 mm – st52 of hardness, max. 400mm of web measurement and max. 100 mm of flange measurement.

C Plus profile products are preferred as load bearing or auxiliary element in industrial constructions and steel buildings in construction, steel construction, light gayge steel construction, automative, electricity-electronics, metal, energy etc. sectors. The profiles are used under the name of C Plus profile, C Plus purlin profile, C Plus tape profile, roof profile, facade profile, light gauge steel construction profile, steel construction profile, heavy steel building profile, perforated C Plus profile, rolled C Plus profile, Special production construction profile, steel building profile, prefabricated construction profile, special production C Plus profile, prefabricated building profile, carcass profile, truss profile, steel roofing profile etc.

C Plus profiles are used as purlin, stringcourse and facade profile in heavy steel industrial buildings exposed to excessive loads and as load-bearing column, beam and roof truss in non-industrial steel constructions such as light gauge steel constructions, warehouses, hangars and barns.

covering and mechanical options can be applied on the materials according to the designed and drawn projects. The specifications of the materials can be preferred as hard or soft according to the loads on them and the thickness of the galvanized covering may change according to the required resistance to corrosion or paint over hot-rolled sheet can be applied, if required.
C Plus profiles provide price and material advantage upto 40% compared to constructions produced in heavy steel materials due to their very high load-bearing capacities. It also makes construction of steel buildings more reliable, fast and affordable by virtue of providing convenience in production, procurement, shipment and assembly.

C Plus profiles are more reliable and preferred on roofs, beams or columns as they do not have breakage of parts. Steel construction systems, essential in developed countries, is the most proper construction system especially for earthquake-prone countries. Besides this, they are preferred due to the fact they are easy to carry, add-remove parts to and from, are eco-friendly and recyclable.

Double lip: 25+15 (Note: Fixed and symmetric dimensions.)
Inner radius in all 90°corners:min. 3.00 mm
All dimensions are accordant with TS EN 1993-1-3 standards.
Material: S390GD + Z / S350GD + Z / DX51D + Z / S235 JR / S355 JR…

CPlus Profile Technical Details Table

H A B C D T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity
Profile mm mm mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
C+400-94x25x15x4 400 94 94 25 15 4 3 625 19,67 25,06 5671,56 283,58 14,93 272,74 38,72 3,27 2,36 0
C+400-92x25x15x3,5 400 92 92 25 15 3,5 3 625 17,21 21,93 4954,7 247,74 14,93 231,63 33,55 3,23 2,3 0
C+400-90x25x15x3 400 90 90 25 15 3 3 625 14,76 18,8 4239,98 212 14,93 192,58 28,48 3,18 2,24 0
C+400-88x25x15x2,5 400 88 88 25 15 2,5 3 625 12,3 15,67 3527,46 176,37 14,92 155,58 23,49 3,13 2,18 0
C+400-87x25x15x2 400 87 87 25 15 2 3 625 9,87 12,58 2832,99 141,65 14,94 123,91 18,91 3,12 2,15 0
C+380-92x25x15x4 380 92 92 25 15 4 3 600 18,92 24,1 4954,99 260,79 14,23 255,07 37,3 3,23 2,36 0
C+380-90x25x15x3,5 380 90 90 25 15 3,5 3 600 16,55 21,09 4328,5 227,82 14,22 216,46 32,31 3,18 2,3 0
C+380-88x25x15x3 380 88 88 25 15 3 3 600 14,19 18,08 3703,92 194,94 14,22 179,84 27,42 3,13 2,24 0
C+380-86x25x15x2,5 380 86 86 25 15 2,5 3 600 11,83 15,07 3081,32 162,17 14,22 145,16 22,61 3,09 2,18 0
C+380-85x25x15x2 380 85 85 25 15 2 3 600 9,5 12,1 2474,99 130,26 14,23 115,58 18,21 3,08 2,15 0
C+360-100x25x15x3,5 360 100 100 25 15 3,5 3 600 16,55 21,09 4022,52 223,47 13,71 275,44 37,77 3,59 2,71 0
C+360-98x25x15x3 360 98 98 25 15 3 3 600 14,19 18,08 3442,95 191,28 13,71 229,69 32,11 3,54 2,65 0
C+360-96x25x15x2,5 360 96 96 25 15 2,5 3 600 11,83 15,07 2864,92 159,16 13,71 186,13 26,53 3,49 2,58 0
C+360-93x25x15x2 360 93 93 25 15 2 3 600 9,43 12,02 2275,65 126,42 13,69 141,03 20,7 3,41 2,49 0
C+320-97x25x15x4 320 97 97 25 15 4 3 550 17,35 22,1 3380,7 211,29 12,26 276,05 39,85 3,5 2,77 0
C+320-95x25x15x3,5 320 95 95 25 15 3,5 3 550 15,18 19,34 2953,73 184,61 12,26 234,74 34,56 3,46 2,71 0
C+320-93x25x15x3 320 93 93 25 15 3 3 550 13,01 16,58 2527,92 158 12,26 195,43 29,36 3,41 2,64 0
C+320-91x25x15x2,5 320 91 91 25 15 2,5 3 550 10,85 13,82 2103,31 131,46 12,26 158,09 24,24 3,36 2,58 0
C+320-88x25x15x2 320 88 88 25 15 2 3 550 8,65 11,02 1669,8 104,36 12,24 119,41 18,89 3,27 2,48 0
C+280-92x25x15x4 280 92 92 25 15 4 3 500 15,78 20,1 2388,21 170,59 10,8 232,68 36,27 3,37 2,78 0
C+280-90x25x15x3,5 280 90 90 25 15 3,5 3 500 13,81 17,59 2086,4 149,03 10,8 197,51 31,44 3,32 2,72 0
C+280-88x25x15x3 280 88 88 25 15 3 3 500 11,84 15,08 1785,45 127,53 10,8 164,13 26,69 3,27 2,65 0
C+280-86x25x15x2,5 280 86 86 25 15 2,5 3 500 9,87 12,57 1485,32 106,09 10,8 132,45 22,02 3,22 2,58 0
C+280-85x25x15x2 280 85 85 25 15 2 3 500 7,93 10,1 1193,91 85,28 10,81 105,47 17,73 3,21 2,55 0
C+260-100x25x15x3,5 260 100 100 25 15 3,5 3 500 13,81 17,59 1866,09 143,55 10,21 248,55 36,57 3,73 3,2 0
C+260-98x25x15x3 260 98 98 25 15 3 3 500 11,84 15,08 1597,52 122,89 10,21 207,32 31,11 3,68 3,14 0
C+260-96x25x15x2,5 260 96 96 25 15 2,5 3 500 9,87 12,57 1329,48 102,27 10,22 167,97 25,71 3,63 3,07 0
C+260-93x25x15x2 260 93 93 25 15 2 3 500 7,86 10,02 1055,46 81,19 10,2 127,33 20,08 3,54 2,96 0
C+260-90x25x15x1,5 260 90 90 25 15 1,5 3 500 5,88 7,49 785,52 60,42 10,19 90,44 14,71 3,46 2,85 0
C+250-98x25x15x2 250 98 98 25 15 2 3 500 7,86 10,02 993,73 79,5 9,9 142,22 21,59 3,75 3,21 0
C+250-95x25x15x1,5 250 95 95 25 15 1,5 3 500 5,88 7,49 739,82 59,19 9,89 101,32 15,84 3,66 3,1 0
C+240-87x25x15x4 240 87 87 25 15 4 3 450 14,21 18,1 1603,73 133,64 9,32 193,07 32,77 3,23 2,81 0
C+240-85x25x15x3,5 240 85 85 25 15 3,5 3 450 12,43 15,84 1400,93 116,74 9,32 163,55 28,39 3,18 2,74 0
C+230-92x25x15x4 230 92 92 25 15 4 3 450 14,21 18,1 1501,34 130,55 9,01 217,85 35,5 3,43 3,06 0
C+230-90x25x15x3,5 230 90 90 25 15 3,5 3 450 12,43 15,84 1311,8 114,07 9,01 184,95 30,79 3,39 2,99 0
C+230-88x25x15x3 230 88 88 25 15 3 3 450 10,66 13,58 1122,73 97,63 9,02 153,72 26,15 3,34 2,92 0
C+230-86x25x15x2,5 230 86 86 25 15 2,5 3 450 8,88 11,32 934,09 81,23 9,02 124,06 21,58 3,29 2,85 0
C+220-97x25x15x4 220 97 97 25 15 4 3 450 14,21 18,1 1399,15 127,2 8,7 243,8 38,27 3,63 3,33 0
C+220-93x25x15x3 220 93 93 25 15 3 3 450 10,66 13,58 1046,82 95,17 8,71 172,7 28,24 3,54 3,19 0
C+220-91x25x15x2,5 220 91 91 25 15 2,5 3 450 8,88 11,32 871,15 79,2 8,71 139,68 23,33 3,49 3,11 0
C+220-88x25x15x2 220 88 88 25 15 2 3 450 7,08 9,02 691,18 62,83 8,7 105,56 18,2 3,4 3 0
C+220-87x25x15x1,5 220 87 87 25 15 1,5 3 450 5,34 6,8 521,26 47,39 8,71 78,91 13,77 3,39 2,97 0
C+220-85x25x15x1,2 220 85 85 25 15 1,2 3 450 4,26 5,42 414,34 37,67 8,7 60,62 10,81 3,33 2,89 0
C+200-89x25x15x4 200 89 89 25 15 4 3 414 13,08 16,66 1058,66 105,87 7,88 191,35 33,21 3,35 3,14 0
C+200-87x25x15x3,5 200 87 87 25 15 3,5 3 414 11,44 14,58 925,03 92,5 7,88 162,27 28,8 3,3 3,07 0
C+200-85x25x15x3 200 85 85 25 15 3 3 414 9,81 12,5 791,71 79,17 7,89 134,71 24,46 3,25 2,99 0
C+190-94x25x15x4 190 94 94 25 15 4 3 414 13,08 16,66 973,22 102,44 7,56 214,32 35,83 3,55 3,42 0
C+190-92x25x15x3,5 190 92 92 25 15 3,5 3 414 11,44 14,58 850,63 89,54 7,56 182,12 31,11 3,5 3,35 0
C+190-90x25x15x3 190 90 90 25 15 3 3 414 9,81 12,5 728,26 76,66 7,56 151,51 26,44 3,45 3,27 0
C+190-88x25x15x2,5 190 88 88 25 15 2,5 3 414 8,18 10,42 606,07 63,8 7,56 122,4 21,84 3,4 3,2 0
C+190-86x25x15x2 190 86 86 25 15 2 3 414 6,54 8,34 484,18 50,97 7,57 94,88 17,31 3,35 3,12 0
C+180-99x25x15x4 180 99 99 25 15 4 3 414 13,08 16,66 888,86 98,76 7,22 238,08 38,48 3,74 3,71 0
C+180-97x25x15x3,5 180 97 97 25 15 3,5 3 414 11,44 14,58 777,16 86,35 7,23 202,69 33,42 3,69 3,64 0
C+180-95x25x15x3 180 95 95 25 15 3 3 414 9,81 12,5 665,57 73,95 7,23 168,94 28,44 3,64 3,56 0
C+180-94x25x15x2,5 180 94 94 25 15 2,5 3 414 8,22 10,47 558,01 62 7,24 140,27 23,88 3,63 3,53 0
C+180-91x25x15x2 180 91 91 25 15 2 3 414 6,54 8,34 442,83 49,2 7,24 106,28 18,67 3,55 3,41 0
C+180-90x25x15x1,5 180 90 90 25 15 1,5 3 414 4,94 6,29 334,19 37,13 7,25 79,45 14,12 3,53 3,37 0
C+180-89x25x15x1,2 180 89 89 25 15 1,2 3 414 3,95 5,04 267,56 29,73 7,25 62,76 11,28 3,51 3,34 0
C+180-86x25x15x1 180 86 86 25 15 1 3 414 3,26 4,16 219,34 24,37 7,23 48,74 9,04 3,41 3,21 0
C+170-100x25x15x3 170 100 100 25 15 3 3 414 9,81 12,5 603,94 71,05 6,89 186,88 30,45 3,83 3,86 0
C+170-98x25x15x2,5 170 98 98 25 15 2,5 3 414 8,18 10,42 502,94 59,17 6,89 151,56 25,2 3,78 3,79 0
C+170-96x25x15x2 170 96 96 25 15 2 3 414 6,54 8,34 402,14 47,31 6,9 118,03 20,03 3,74 3,71 0
C+170-92x25x15x1,2 170 92 92 25 15 1,2 3 414 3,92 4,99 239,63 28,19 6,9 66,36 11,74 3,63 3,55 0
C+170-90x25x15x1 170 90 90 25 15 1 3 414 3,25 4,14 197,88 23,28 6,89 52,99 9,57 3,56 3,46 0
C+160-93x25x15x2 160 93 93 25 15 2 3 400 6,29 8,02 342,31 42,79 6,49 107,06 18,99 3,63 3,66 0
C+160-92x25x15x1,5 160 92 92 25 15 1,5 3 400 4,75 6,05 258,43 32,3 6,5 80,03 14,36 3,62 3,63 0
C+160-91x25x15x1,2 160 91 91 25 15 1,2 3 400 3,8 4,85 206,96 25,87 6,5 63,24 11,47 3,59 3,59 0
C+160-88x25x15x1 160 88 88 25 15 1 3 400 3,14 4 169,6 21,2 6,49 49,16 9,2 3,49 3,46 0
C+150-90x25x15x3 150 90 90 25 15 3 3 375 8,87 11,3 420,21 56,03 6,04 138,61 25,64 3,47 3,6 0
C+150-88x25x15x2,5 150 88 88 25 15 2,5 3 375 7,39 9,42 349,84 46,65 6,04 111,99 21,19 3,42 3,52 0
C+150-86x25x15x2 150 86 86 25 15 2 3 375 5,92 7,54 279,68 37,29 6,04 86,91 16,83 3,37 3,44 0
C+150-85x25x15x1,5 150 85 85 25 15 1,5 3 375 4,46 5,69 211,22 28,16 6,06 64,92 12,73 3,36 3,4 0
C+140-95x25x15x3 140 95 95 25 15 3 3 375 8,87 11,3 372,07 53,15 5,68 153,53 27,49 3,65 3,92 0
C+140-93x25x15x2,5 140 93 93 25 15 2,5 3 375 7,39 9,42 309,91 44,27 5,68 124,29 22,74 3,6 3,83 0
C+140-91x25x15x2 140 91 91 25 15 2 3 375 5,92 7,54 247,88 35,41 5,69 96,65 18,08 3,55 3,75 0
C+140-90x25x15x1,5 140 90 90 25 15 1,5 3 375 4,46 5,69 187,26 26,75 5,7 72,24 13,68 3,54 3,72 0
C+140-86x25x15x1 140 86 86 25 15 1 3 375 2,95 3,76 122,82 17,55 5,69 44,29 8,76 3,42 3,55 0
C+120-88x25x15x4 120 88 88 25 15 4 3 333 10,5 13,38 317,25 52,88 4,8 152,87 30,4 3,33 3,77 0
C+120-86x25x15x3,5 120 86 86 25 15 3,5 3 333 9,19 11,71 277,69 46,28 4,81 129,78 26,42 3,29 3,69 0
C+120-85x25x15x3 120 85 85 25 15 3 3 333 7,93 10,1 239,98 40 4,82 110,81 22,86 3,28 3,65 0
C+100-98x25x15x4 100 98 98 25 15 4 3 333 10,5 13,38 225,3 45,06 4,05 184,82 34,71 3,67 4,48 0
C+100-96x25x15x3,5 100 96 96 25 15 3,5 3 333 9,19 11,71 197,41 39,48 4,05 157,35 30,2 3,62 4,39 0
C+100-94x25x15x3 100 94 94 25 15 3 3 333 7,88 10,04 169,43 33,89 4,06 131,15 25,74 3,57 4,3 0
C+100-92x25x15x2,5 100 92 92 25 15 2,5 3 333 6,57 8,37 141,36 28,27 4,07 106,22 21,32 3,53 4,22 0
C+100-90x25x15x2 100 90 90 25 15 2 3 333 5,26 6,7 113,2 22,64 4,08 82,53 16,95 3,48 4,13 0
C+100-88x25x15x1,2 100 88 88 25 15 1,2 3 333 3,18 4,05 68,66 13,73 4,09 48,69 10,25 3,44 4,05 0
C+100-85x25x15x1 100 85 85 25 15 1 3 333 2,62 3,34 56,19 11,24 4,08 37,8 8,23 3,35 3,91 0
C+180-86x25x15x1 180 86 86 25 15 1 3 414 3,26 4,16 219,34 24,37 7,23 48,74 9,04 3,41 3,21 0
C+170-100x25x15x3 170 100 100 25 15 3 3 414 9,81 12,5 603,94 71,05 6,89 186,88 30,45 3,83 3,86 0
C+170-98x25x15x2,5 170 98 98 25 15 2,5 3 414 8,18 10,42 502,94 59,17 6,89 151,56 25,2 3,78 3,79 0
C+170-96x25x15x2 170 96 96 25 15 2 3 414 6,54 8,34 402,14 47,31 6,9 118,03 20,03 3,74 3,71 0
C+170-92x25x15x1,2 170 92 92 25 15 1,2 3 414 3,92 4,99 239,63 28,19 6,9 66,36 11,74 3,63 3,55 0
C+170-90x25x15x1 170 90 90 25 15 1 3 414 3,25 4,14 197,88 23,28 6,89 52,99 9,57 3,56 3,46 0
C+160-93x25x15x2 160 93 93 25 15 2 3 400 6,29 8,02 342,31 42,79 6,49 107,06 18,99 3,63 3,66 0
C+160-92x25x15x1,5 160 92 92 25 15 1,5 3 400 4,75 6,05 258,43 32,3 6,5 80,03 14,36 3,62 3,63 0
C+160-91x25x15x1,2 160 91 91 25 15 1,2 3 400 3,8 4,85 206,96 25,87 6,5 63,24 11,47 3,59 3,59 0
C+160-88x25x15x1 160 88 88 25 15 1 3 400 3,14 4 169,6 21,2 6,49 49,16 9,2 3,49 3,46 0
C+150-90x25x15x3 150 90 90 25 15 3 3 375 8,87 11,3 420,21 56,03 6,04 138,61 25,64 3,47 3,6 0
C+150-88x25x15x2,5 150 88 88 25 15 2,5 3 375 7,39 9,42 349,84 46,65 6,04 111,99 21,19 3,42 3,52 0
C+150-86x25x15x2 150 86 86 25 15 2 3 375 5,92 7,54 279,68 37,29 6,04 86,91 16,83 3,37 3,44 0
C+150-85x25x15x1,5 150 85 85 25 15 1,5 3 375 4,46 5,69 211,22 28,16 6,06 64,92 12,73 3,36 3,4 0
C+140-95x25x15x3 140 95 95 25 15 3 3 375 8,87 11,3 372,07 53,15 5,68 153,53 27,49 3,65 3,92 0
C+140-93x25x15x2,5 140 93 93 25 15 2,5 3 375 7,39 9,42 309,91 44,27 5,68 124,29 22,74 3,6 3,83 0
C+140-91x25x15x2 140 91 91 25 15 2 3 375 5,92 7,54 247,88 35,41 5,69 96,65 18,08 3,55 3,75 0
C+140-90x25x15x1,5 140 90 90 25 15 1,5 3 375 4,46 5,69 187,26 26,75 5,7 72,24 13,68 3,54 3,72 0
C+140-86x25x15x1 140 86 86 25 15 1 3 375 2,95 3,76 122,82 17,55 5,69 44,29 8,76 3,42 3,55 0
C+120-88x25x15x4 120 88 88 25 15 4 3 333 10,5 13,38 317,25 52,88 4,8 152,87 30,4 3,33 3,77 0
C+120-86x25x15x3,5 120 86 86 25 15 3,5 3 333 9,19 11,71 277,69 46,28 4,81 129,78 26,42 3,29 3,69 0
C+120-85x25x15x3 120 85 85 25 15 3 3 333 7,93 10,1 239,98 40 4,82 110,81 22,86 3,28 3,65 0
C+100-98x25x15x4 100 98 98 25 15 4 3 333 10,5 13,38 225,3 45,06 4,05 184,82 34,71 3,67 4,48 0
C+100-96x25x15x3,5 100 96 96 25 15 3,5 3 333 9,19 11,71 197,41 39,48 4,05 157,35 30,2 3,62 4,39 0
C+100-94x25x15x3 100 94 94 25 15 3 3 333 7,88 10,04 169,43 33,89 4,06 131,15 25,74 3,57 4,3 0
C+100-92x25x15x2,5 100 92 92 25 15 2,5 3 333 6,57 8,37 141,36 28,27 4,07 106,22 21,32 3,53 4,22 0
C+100-90x25x15x2 100 90 90 25 15 2 3 333 5,26 6,7 113,2 22,64 4,08 82,53 16,95 3,48 4,13 0
C+100-88x25x15x1,2 100 88 88 25 15 1,2 3 333 3,18 4,05 68,66 13,73 4,09 48,69 10,25 3,44 4,05 0
C+100-85x25x15x1 100 85 85 25 15 1 3 333 2,62 3,34 56,19 11,24 4,08 37,8 8,23 3,35 3,91 0
Profile mm mm mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
H A B C D T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity
    • Different dimentions can be manufactured on demand.
    • Effective – section calculation is recommended according to load and steel class.
    • Effective inertia resistance and cross-sesction values can change according to load,steel frade,bear status
    • All calculations were made according to gravity center.
    • A,B and C cam manufacture with different dimensions.
