Hekim Profil

C Profile

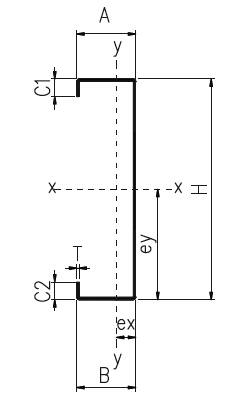

C Profile Section

  • H Height
  • A Upper flange height
  • B Lower flange height
  • C1 Upper lip width
  • C2 Lower lip width
  • T Thickness

c-profil

  •   (mm)
  • H 100-400
  • A 50-100
  • B 50-100
  • C1 15-30
  • C2 15-30
  • T 1.00-4.00

c

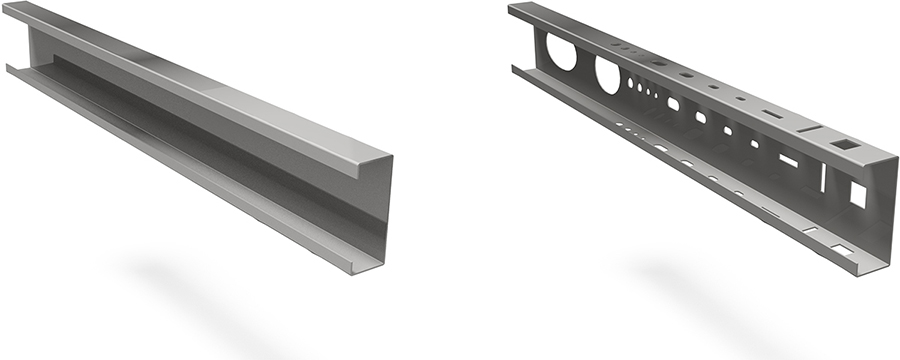

C Profiles are produced in the requested sizes and measures by carrying out perforation and burr-free cutting in the requested measures and axises and inkjet marking on profiles on superior technology production lines, according to the project details and with personal packaging for persons and companies. All points on the profiles can be perforated by means of 3-D drawings of profiles downloaded to our computer controlled, fully automatic and high capacity machines. They can be produced in max. length of 16000 mm, max. 4,00 mm – st52 of hardness, max. 400mm of web measurement and max. 100 mm of flange measurement.

C profile products are preferred as load bearing or auxiliary element in industrial constructions and steel buildings in construction, steel construction, light gayge steel construction, automative, electricity-electronics, metal, energy etc. sectors. The profiles are used under the name of C profile, CC profile, C purlin profile, C tape profile, roof profile, facade profile, light gauge steel construction profile, steel construction profile, heavy steel building profile, perforated C profile, rolled C profile, Special production construction profile, steel building profile, prefabricated construction profile, special production C profile, prefabricated building profile, carcass profile, truss profile, steel roofing profile etc.

C profiles are used as purlin, stringcourse and facade profile in heavy steel industrial buildings exposed to excessive loads and as load-bearing column, beam and roof truss in non-industrial steel constructions such as light gauge steel constructions, warehouses, hangars and barns.

covering and mechanical options can be applied on the materials according to the designed and drawn projects. The specifications of the materials can be preferred as hard or soft according to the loads on them and the thickness of the galvanized covering may change according to the required resistance to corrosion or paint over hot-rolled sheet can be applied, if required.
C profiles provide price and material advantage upto 40% compared to constructions produced in heavy steel materials due to their very high load-bearing capacities. It also makes construction of steel buildings more reliable, fast and affordable by virtue of providing convenience in production, procurement, shipment and assembly.

C profiles are more reliable and preferred on roofs, beams or columns as they do not have breakage of parts. Steel construction systems, essential in developed countries, is the most proper construction system especially for earthquake-prone countries. Besides this, they are preferred due to the fact they are easy to carry, add-remove parts to and from, are eco-friendly and recyclable.

Inner radius in all 90°corners:min. 3.00 mm
All dimensions are accordant with TS EN 1993-1-3 standards.
Material: S390GD + Z / S350GD + Z / DX51D + Z / S235 JR / S355 JR…

C Profile Technical Details Table

  H A B C1 C2 T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity
Profile mm mm mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
C400x100x27x4 400 100 100 27 27 4 3 625 19,61 24,99 5635,3 281,76 14,96 286,98 37,57 3,38 2,36 0
C400x100x26x3,5 400 100 100 26 26 3,5 3 625 17,19 21,9 4949,47 247,47 14,98 251,78 32,84 3,38 2,33 0
C400x100x24x3 400 100 100 24 24 3 3 625 14,72 18,75 4239,79 211,99 15 212,94 27,59 3,36 2,28 0
C400x100x22x2,5 400 100 100 22 22 2,5 3 625 12,25 15,61 3530,39 176,52 15,01 174,94 22,52 3,34 2,23 0
C400x100x21x2 400 100 100 21 21 2 3 625 9,82 12,51 2834,51 141,73 15,03 140,23 17,99 3,34 2,2 0
C400x90x24x4 400 90 90 24 24 4 3 600 18,8 23,95 5248,57 262,43 14,75 209,78 29,93 2,95 1,99 0
C400x90x23x3,5 400 90 90 23 23 3,5 3 600 16,48 20,99 4609,66 230,48 14,77 184,04 26,16 2,95 1,96 0
C400x90x21x3 400 90 90 21 21 3 3 600 14,11 17,97 3946,66 197,33 14,78 155,27 21,91 2,93 1,91 0
C400x90x19x2,5 400 90 90 19 19 2,5 3 600 11,74 14,96 3284,55 164,23 14,79 127,22 17,83 2,91 1,86 0
C400x90x18x2 400 90 90 18 18 2 3 600 9,41 11,99 2637,01 131,85 14,81 101,96 14,23 2,91 1,84 0
C380x100x25x4 380 100 100 25 25 4 3 600 18,86 24,03 4938,82 259,94 14,28 274,37 36,03 3,37 2,38 0
C380x100x23x3,5 380 100 100 23 23 3,5 3 600 16,48 20,99 4318,95 227,31 14,3 236,72 30,87 3,35 2,33 0
C380x100x22x3 380 100 100 22 22 3 3 600 14,15 18,03 3716,16 195,59 14,32 203,33 26,42 3,35 2,3 0
C380x100x20x2,5 380 100 100 20 20 2,5 3 600 11,78 15,01 3094,22 162,85 14,33 166,88 21,53 3,33 2,25 0
C380x100x19x2 380 100 100 19 19 2 3 600 9,44 12,03 2484,62 130,77 14,35 133,72 17,19 3,33 2,22 0
C350x70x20x4 350 70 70 20 20 4 3 500 15,72 20,03 3245,73 185,47 12,67 99,16 17,95 2,22 1,48 0
C350x70x18x3,5 350 70 70 18 18 3,5 3 500 13,73 17,49 2835,1 162,01 12,68 85,01 15,26 2,2 1,43 0
C350x70x16x3 350 70 70 16 16 3 3 500 11,75 14,97 2425,25 138,59 12,69 71,27 12,68 2,18 1,38 0
C350x70x15x2,5 350 70 70 15 15 2,5 3 500 9,82 12,51 2029,35 115,96 12,71 59,52 10,54 2,18 1,35 0
C350x66x17x2 350 66 66 17 17 2 3 500 7,84 9,99 1612,17 92,12 12,68 44,33 8,34 2,1 1,28 0
C320x80x24x4 320 80 80 24 24 4 3 500 15,66 19,95 2864,8 179,05 11,93 147,49 24,37 2,71 1,95 0
C320x80x23x3,5 320 80 80 23 23 3,5 3 500 13,73 17,49 2518,82 157,43 11,95 129,54 21,31 2,71 1,92 0
C320x80x21x3 320 80 80 21 21 3 3 500 11,75 14,97 2157,82 134,86 11,97 109,29 17,83 2,69 1,87 0
C320x80x19x2,5 320 80 80 19 19 2,5 3 500 9,78 12,46 1796,75 112,3 11,98 89,54 14,48 2,67 1,82 0
C320x80x18x2 320 80 80 18 18 2 3 500 7,84 9,99 1444 90,25 12 71,82 11,57 2,68 1,79 0
C300x90x24x4 300 90 90 24 24 4 3 500 15,66 19,95 2627,19 175,15 11,42 194,34 29,21 3,11 2,35 0
C300x90x23x3,5 300 90 90 23 23 3,5 3 500 13,73 17,49 2310,42 154,03 11,45 170,58 25,54 3,11 2,32 0
C300x90x21x3 300 90 90 21 21 3 3 500 11,75 14,97 1980,38 132,03 11,46 144,05 21,39 3,09 2,27 0
C300x90x19x2,5 300 90 90 19 19 2,5 3 500 9,78 12,46 1649,9 109,99 11,48 118,14 17,4 3,07 2,21 0
C300x90x18x2 300 90 90 18 18 2 3 500 7,84 9,99 1326,26 88,42 11,5 94,72 13,89 3,07 2,18 0
C300x89x18x1,5 300 89 89 18 18 1,5 3 500 5,9 7,51 998,01 66,53 11,52 70,58 10,45 3,06 2,15 0
C280x100x24x4 280 100 100 24 24 4 3 500 15,66 19,95 2382,5 170,18 10,88 247,55 34,32 3,51 2,79 0
C280x100x23x3,5 280 100 100 23 23 3,5 3 500 13,73 17,49 2095,78 149,7 10,9 217,19 29,99 3,51 2,76 0
C280x100x21x3 280 100 100 21 21 3 3 500 11,75 14,97 1797,43 128,39 10,92 183,58 25,16 3,49 2,7 0
C280x100x20x2,5 280 100 100 20 20 2,5 3 500 9,82 12,51 1505,6 107,54 10,95 153,33 20,93 3,49 2,67 0
C250x75x22x4 250 75 75 22 22 4 3 414 13,02 16,59 1508,35 120,67 9,48 112,8 20,53 2,59 2,01 0
C250x75x21x3,5 250 75 75 21 21 3,5 3 414 11,42 14,55 1328,02 106,24 9,51 99,11 17,95 2,6 1,98 0
C250x75x19x3 250 75 75 19 19 3 3 414 9,77 12,45 1138,63 91,09 9,53 83,53 14,98 2,58 1,93 0
C250x75x17x2,5 250 75 75 17 17 2,5 3 414 8,13 10,36 948,78 75,9 9,54 68,34 12,14 2,56 1,87 0
C250x75x16x2 250 75 75 16 16 2 3 414 6,52 8,31 763,48 61,08 9,57 54,83 9,69 2,56 1,84 0
C250x75x15x1,5 250 75 75 15 15 1,5 3 414 4,91 6,25 575,92 46,07 9,59 41,23 7,25 2,57 1,81 0
C220x80x24x4 220 80 80 24 24 4 3 400 12,52 15,95 1171,28 106,48 8,52 132,21 23,52 2,86 2,38 0
C220x80x23x3,5 220 80 80 23 23 3,5 3 400 10,98 13,99 1032,24 93,84 8,55 116,21 20,57 2,87 2,35 0
C220x80x21x3 220 80 80 21 21 3 3 400 9,4 11,97 886,37 80,58 8,57 98,2 17,22 2,85 2,3 0
C220x80x19x2,5 220 80 80 19 19 2,5 3 400 7,81 9,96 739,68 67,24 8,59 80,57 13,99 2,84 2,24 0
C220x80x18x2 220 80 80 18 18 2 3 400 6,27 7,99 595,76 54,16 8,62 64,68 11,17 2,84 2,21 0
C220x80x16x1,5 220 80 80 16 16 1,5 3 400 4,7 5,98 447,19 40,65 8,64 47,67 8,15 2,82 2,15 0
C200x80x22x4 200 80 80 22 22 4 3 375 11,76 14,99 926,31 92,63 7,81 123,64 22,23 2,85 2,44 0
C200x80x21x3,5 200 80 80 21 21 3,5 3 375 10,32 13,15 816,82 81,68 7,84 108,64 19,43 2,86 2,41 0
C200x80x19x3 200 80 80 19 19 3 3 375 8,83 11,25 701,61 70,16 7,86 91,69 16,23 2,84 2,35 0
C200x80x17x2,5 200 80 80 17 17 2,5 3 375 7,34 9,36 585,65 58,56 7,89 75,13 13,16 2,83 2,29 0
C200x80x16x2 200 80 80 16 16 2 3 375 5,9 7,51 471,93 47,19 7,91 60,29 10,51 2,83 2,26 0
C180x70x21x4 180 70 70 21 21 4 3 333 10,44 13,31 658,09 73,12 6,98 84,13 17,35 2,5 2,15 0
C180x70x20x3,5 180 70 70 20 20 3,5 3 333 9,17 11,68 580,91 64,55 7,01 73,99 15,17 2,5 2,12 0
C180x70x18x3 180 70 70 18 18 3 3 333 7,84 9,99 499,2 55,47 7,03 62,37 12,64 2,49 2,07 0
C180x70x16x2,5 180 70 70 16 16 2,5 3 333 6,52 8,31 416,83 46,31 7,06 51,02 10,22 2,47 2,01 0
C180x70x15x2 180 70 70 15 15 2 3 333 5,24 6,67 336,21 37,36 7,08 40,97 8,16 2,47 1,98 0
C160x80x21x4 160 80 80 21 21 4 3 333 10,44 13,31 547,31 68,41 6,37 112,57 21,12 2,89 2,67 0
C160x80x20x3,5 160 80 80 20 20 3,5 3 333 9,17 11,68 483,53 60,44 6,4 98,95 18,46 2,89 2,64 0
C160x80x18x3 160 80 80 18 18 3 3 333 7,84 9,99 416,15 52,02 6,42 83,53 15,41 2,88 2,58 0
C160x80x16x2,5 160 80 80 16 16 2,5 3 333 6,52 8,31 348 43,5 6,45 68,44 12,49 2,86 2,52 0
C150x80x24x3,5 150 80 80 24 24 3,5 3 333 9,12 11,61 424,41 56,59 6,01 103,89 20,13 2,97 2,84 0
C150x80x23x3 150 80 80 23 23 3 3 333 7,84 9,99 367,68 49,02 6,04 89,56 17,25 2,98 2,81 0
C150x80x21x2,5 150 80 80 21 21 2,5 3 333 6,52 8,31 308,22 41,1 6,07 73,74 14,05 2,97 2,75 0
C150x80x20x2 150 80 80 20 20 2 3 333 5,24 6,67 249,12 33,22 6,1 59,29 11,23 2,97 2,72 0
C150x80x18x1,5 150 80 80 18 18 1,5 3 333 3,92 4,99 187,79 25,04 6,13 43,86 8,21 2,96 2,66 0
C140x75x19x4 140 75 75 19 19 4 3 300 9,38 11,95 379,07 54,15 5,59 87,98 17,8 2,69 2,56 0
C140x75x16x3 140 75 75 16 16 3 3 300 7,04 8,97 288,82 41,26 5,64 65,17 12,94 2,68 2,46 0
C140x70x19x2,5 140 70 70 19 19 2,5 3 300 5,85 7,46 237,02 33,86 5,62 50,12 10,79 2,58 2,36 0
C140x70x18x2 140 70 70 18 18 2 3 300 4,7 5,99 191,74 27,39 5,64 40,32 8,63 2,59 2,33 0
C140x70x16x1,5 140 70 70 16 16 1,5 3 300 3,52 4,48 144,53 20,65 5,67 29,76 6,29 2,57 2,27 0
C120x60x16x3 120 60 60 16 16 3 3 250 5,86 7,47 172,08 28,68 4,77 35,46 8,88 2,17 2,01 0
C120x60x15x2,5 120 60 60 15 15 2,5 3 250 4,91 6,26 145,27 24,21 4,8 29,73 7,39 2,17 1,98 0
C120x57x16x2 120 57 57 16 16 2 3 250 3,92 4,99 115,14 19,19 4,79 22,2 5,82 2,1 1,89 0
C120x57x15x1,5 120 57 57 15 15 1,5 3 250 2,95 3,76 87,49 14,58 4,82 16,77 4,36 2,11 1,86 0
C120x55x16x1,2 120 55 55 16 16 1,2 3 250 2,36 3,01 69,6 11,6 4,81 12,85 3,48 2,07 1,81 0
C120x55x15x1 120 55 55 15 15 1 3 250 1,97 2,5 58,08 9,68 4,82 10,6 2,85 2,06 1,78 0
C100x65x19x4 100 65 65 19 19 4 3 240 7,49 9,55 155,56 31,11 4 54,46 13,52 2,37 2,47 0
C100x65x18x3,5 100 65 65 18 18 3,5 3 240 6,59 8,39 138,32 27,66 4,03 48 11,83 2,37 2,44 0
C100x65x17x3 100 65 65 17 17 3 3 240 5,67 7,23 120,45 24,09 4,05 41,43 10,13 2,38 2,41 0
C100x65x15x2,5 100 65 65 15 15 2,5 3 240 4,71 6,01 101,35 20,27 4,09 33,95 8,18 2,37 2,35 0
C100x60x18x2 100 60 60 18 18 2 3 240 3,76 4,79 79,36 15,87 4,06 24,67 6,54 2,26 2,23 0
C100x60x17x1,5 100 60 60 17 17 1,5 3 240 2,84 3,61 60,48 12,1 4,09 18,65 4,91 2,27 2,2 0
C100x60x15x1,2 100 60 60 15 15 1,2 3 240 2,25 2,87 48,43 9,69 4,11 14,5 3,75 2,25 2,14 0
C100x60x15x1 100 60 60 15 15 1 3 240 1,89 2,4 40,72 8,14 4,12 12,25 3,17 2,26 2,14 0
C100x50x15x2,5 100 50 50 15 15 2,5 3 212 4,13 5,26 83,52 16,7 3,96 17,8 5,42 1,83 1,72 0
C100x50x15x2 100 50 50 15 15 2 3 212 3,35 4,27 68,4 13,68 3,99 14,76 4,5 1,85 1,72 0
C100x50x15x1,5 100 50 50 15 15 1,5 3 217 2,55 3,25 52,51 10,5 4,01 11,48 3,5 1,88 1,72 0
C100x50x15x1,2 100 50 50 15 15 1,2 3 217 2,06 2,63 42,58 8,52 4,03 9,37 2,86 1,89 1,72 0
C100x65x18x3,5 100 65 65 18 18 3,5 3 240 6,59 8,39 138,32 27,66 4,03 48 11,83 2,37 2,44 0
C100x65x17x3 100 65 65 17 17 3 3 240 5,67 7,23 120,45 24,09 4,05 41,43 10,13 2,38 2,41 0
C100x65x15x2,5 100 65 65 15 15 2,5 3 240 4,71 6,01 101,35 20,27 4,09 33,95 8,18 2,37 2,35 0
C100x60x18x2 100 60 60 18 18 2 3 240 3,76 4,79 79,36 15,87 4,06 24,67 6,54 2,26 2,23 0
C100x60x17x1,5 100 60 60 17 17 1,5 3 240 2,84 3,61 60,48 12,1 4,09 18,65 4,91 2,27 2,2 0
C100x60x15x1,2 100 60 60 15 15 1,2 3 240 2,25 2,87 48,43 9,69 4,11 14,5 3,75 2,25 2,14 0
C100x60x15x1 100 60 60 15 15 1 3 240 1,89 2,4 40,72 8,14 4,12 12,25 3,17 2,26 2,14 0
C100x50x15x2,5 100 50 50 15 15 2,5 3 212 4,13 5,26 83,52 16,7 3,96 17,8 5,42 1,83 1,72 0
C100x50x15x2 100 50 50 15 15 2 3 212 3,35 4,27 68,4 13,68 3,99 14,76 4,5 1,85 1,72 0
C100x50x15x1,5 100 50 50 15 15 1,5 3 217 2,55 3,25 52,51 10,5 4,01 11,48 3,5 1,88 1,72 0
C100x50x15x1,2 100 50 50 15 15 1,2 3 217 2,06 2,63 42,58 8,52 4,03 9,37 2,86 1,89 1,72 0
Profile mm mm mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
  H A B C1 C2 T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity
    • Different dimentions can be manufactured on demand.
    • Effective – section calculation is recommended according to load and steel class.
    • Effective inertia resistance and cross-sesction values can change according to load,steel frade,bear status
    • All calculations were made according to gravity center.
    • A,B and C cam manufacture with different dimensions.
