Hekim Profil

Sigma Plus Profile

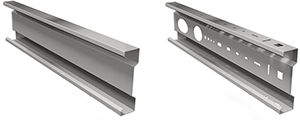

SigmaPlus Profile Section

  • H Height
  • A Upper flange height
  • B Lower flange height
  • T Thickness
  • G Depth
  • F Bending
  • E Connection surface

sigma-plus-profil

  •   (mm)
  • H 185-400
  • A 85-100
  • B 85-100
  • T 1.00-4.00
  • G 25
  • F 15
  • E 55-120

sigma-plus

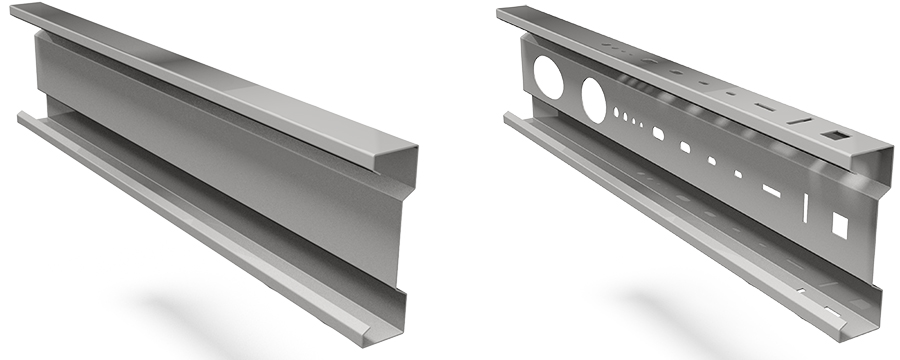

Sigma Plus Profiles are produced in the requested sizes and measures by carrying out perforation and burr-free cutting in the requested measures and axises and inkjet marking on profiles on superior technology production lines, according to the project details and with personal packaging for persons and companies. All points on the profiles can be perforated by means of 3-D drawings of profiles downloaded to our computer controlled, fully automatic and high capacity machines. They can be produced in max. length of 16000 mm, max. 4,00 mm – st52 of hardness, max. 400mm of web measurement and max. 100 mm of flange measurement.

Sigma Plus profile products are preferred as load bearing or auxiliary element in industrial constructions and steel buildings in construction, steel construction, light gayge steel construction, automative, electricity-electronics, metal, energy etc. sectors. The profiles are used under the name of Sigma Plus profile, Sigma Plus purlin profile, Sigma Plus tape profile, roof profile, facade profile, light gauge steel construction profile, steel construction profile, heavy steel building profile, perforated Sigma Plus profile, rolled Sigma Plus profile, Special production construction profile, steel building profile, prefabricated construction profile, special production Sigma Plus profile, prefabricated building profile, carcass profile, truss profile, steel roofing profile etc.

Sigma Plus profiles are used as purlin, stringcourse and facade profile in heavy steel industrial buildings exposed to excessive loads and as load-bearing column, beam and roof truss in non-industrial steel constructions such as light gauge steel constructions, warehouses, hangars and barns.

covering and mechanical options can be applied on the materials according to the designed and drawn projects. The specifications of the materials can be preferred as hard or soft according to the loads on them and the thickness of the galvanized covering may change according to the required resistance to corrosion or paint over hot-rolled sheet can be applied, if required.
Sigma Plus profiles provide price and material advantage upto 40% compared to constructions produced in heavy steel materials due to their very high load-bearing capacities. It also makes construction of steel buildings more reliable, fast and affordable by virtue of providing convenience in production, procurement, shipment and assembly.

Sigma Plus profiles are more reliable and preferred on roofs, beams or columns as they do not have breakage of parts. Steel construction systems, essential in developed countries, is the most proper construction system especially for earthquake-prone countries. Besides this, they are preferred due to the fact they are easy to carry, add-remove parts to and from, are eco-friendly and recyclable.

Double lip: 25+15 (Note: Fixed and symmetric dimensions.)
Inner radius in all 90°corners:min. 3.00 mm
All dimensions are accordant with TS EN 1993-1-3 standards.
Material: S390GD + Z / S350GD + Z / DX51D + Z / S235 JR / S355 JR…

SigmaPlus Profile Technical Details Table

  H A B C D E F G T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity
Profile mm mm mm mm mm mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
S+400-55x95x25x15x3 400 95 95 25 15 55 15 25 3 3 660 15,56 19,82 4509,94 225,5 14,97 158,32 25,9 2,81 3,39 0
S+400-55x93x25x15x2,5 400 93 93 25 15 55 15 25 2,5 3 660 12,98 16,54 3753,13 187,66 14,97 128,1 21,45 2,77 3,33 0
S+400-55x90x25x15x2 400 90 90 25 15 55 15 25 2 3 660 10,37 13,21 2982,14 149,11 14,95 96,32 16,73 2,69 3,24 0
S+380-60x90x25x15x3,5 380 90 90 25 15 60 15 25 3,5 3 625 17,2 21,91 4469,3 235,23 14,15 159,22 27,61 2,67 3,23 0
S+380-60x88x25x15x3 380 88 88 25 15 60 15 25 3 3 625 14,76 18,8 3824,8 201,31 14,15 132,05 23,47 2,63 3,17 0
S+380-60x85x25x15x2,5 380 85 85 25 15 60 15 25 2,5 3 625 12,27 15,64 3164,39 166,55 14,13 103,25 19,07 2,55 3,09 0
S+380-55x92x25x15x4 380 92 92 25 15 55 15 25 4 3 625 19,64 25,02 5128,71 269,93 14,17 184,05 31,36 2,69 3,33 0
S+380-55x90x25x15x3,5 380 90 90 25 15 55 15 25 3,5 3 625 17,2 21,91 4480,92 235,84 14,17 156,02 27,24 2,64 3,27 0
S+380-55x88x25x15x3 380 88 88 25 15 55 15 25 3 3 625 14,76 18,8 3834,79 201,83 14,17 129,36 23,15 2,6 3,21 0
S+380-55x85x25x15x2,5 380 85 85 25 15 55 15 25 2,5 3 625 12,27 15,64 3172,74 166,99 14,15 101,09 18,81 2,53 3,13 0
S+370-55x95x25x15x3,5 370 95 95 25 15 55 15 25 3,5 3 625 17,2 21,91 4317,38 233,37 13,91 179,91 29,61 2,84 3,43 0
S+370-55x93x25x15x3 370 93 93 25 15 55 15 25 3 3 625 14,76 18,8 3695,24 199,74 13,91 149,46 25,18 2,8 3,36 0
S+370-55x90x25x15x2,5 370 90 90 25 15 55 15 25 2,5 3 625 12,27 15,64 3057,91 165,29 13,89 117,22 20,48 2,72 3,28 0
S+370-55x87x25x15x2 370 87 87 25 15 55 15 25 2 3 625 9,8 12,49 2428,88 131,29 13,87 87,98 15,96 2,64 3,19 0
S+350-60x90x25x15x3 350 90 90 25 15 60 15 25 3 3 600 14,15 18,02 3168,48 181,06 13,15 139,68 24,33 2,76 3,26 0
S+350-60x88x25x15x2,5 350 88 88 25 15 60 15 25 2,5 3 600 11,8 15,04 2636,24 150,64 13,15 112,67 20,11 2,72 3,2 0
S+350-60x85x25x15x2 350 85 85 25 15 60 15 25 2 3 600 9,42 12,01 2093,43 119,62 13,13 84,59 15,69 2,64 3,11 0
S+350-55x93x25x15x3,5 350 93 93 25 15 55 15 25 3,5 3 600 16,54 21,07 3733,5 213,34 13,19 169,68 28,71 2,81 3,39 0
S+350-55x90x25x15x3 350 90 90 25 15 55 15 25 3 3 600 14,15 18,02 3177,27 181,56 13,17 136,86 24,01 2,73 3,3 0
S+350-55x88x25x15x2,5 350 88 88 25 15 55 15 25 2,5 3 600 11,8 15,04 2643,59 151,06 13,16 110,36 19,84 2,69 3,24 0
S+350-55x85x25x15x2 350 85 85 25 15 55 15 25 2 3 600 9,42 12,01 2099,33 119,96 13,14 82,81 15,47 2,61 3,15 0
S+340-55x95x25x15x3 340 95 95 25 15 55 15 25 3 3 600 14,15 18,02 3047,59 179,27 12,9 157,52 26,08 2,93 3,46 0
S+340-55x93x25x15x2,5 340 93 93 25 15 55 15 25 2,5 3 600 11,8 15,04 2536,01 149,18 12,89 127,28 21,57 2,89 3,4 0
S+340-55x90x25x15x2 340 90 90 25 15 55 15 25 2 3 600 9,42 12,01 2014,34 118,49 12,88 95,86 16,84 2,81 3,31 0
S+310-60x90x25x15x4 310 90 90 25 15 60 15 25 4 3 550 17,32 22,06 3086,82 199,15 11,69 176,41 30,97 2,8 3,3 0
S+310-60x88x25x15x3,5 310 88 88 25 15 60 15 25 3,5 3 550 15,17 19,32 2696,62 173,98 11,69 149,4 26,87 2,75 3,24 0
S+310-60x85x25x15x3 310 85 85 25 15 60 15 25 3 3 550 12,97 16,52 2293,43 147,96 11,67 120,22 22,46 2,67 3,15 0
S+310-55x90x25x15x4 310 90 90 25 15 55 15 25 4 3 550 17,32 22,06 3096,39 199,77 11,71 172,66 30,55 2,77 3,35 0
S+310-55x88x25x15x3,5 310 88 88 25 15 55 15 25 3,5 3 550 15,17 19,32 2705,01 174,52 11,71 146,18 26,51 2,72 3,29 0
S+310-55x85x25x15x3 310 85 85 25 15 55 15 25 3 3 550 12,97 16,52 2300,64 148,43 11,69 117,56 22,14 2,64 3,19 0
S+300-60x90x25x15x3 300 90 90 25 15 60 15 25 3 3 550 12,97 16,52 2184,62 145,64 11,39 138,87 24,42 2,87 3,31 0
S+300-60x88x25x15x2,5 300 88 88 25 15 60 15 25 2,5 3 550 10,82 13,79 1817,81 121,19 11,39 112,22 20,21 2,83 3,25 0
S+300-60x85x25x15x2 300 85 85 25 15 60 15 25 2 3 550 8,64 11,01 1443 96,2 11,38 84,35 15,78 2,75 3,15 0
S+300-55x95x25x15x4 300 95 95 25 15 55 15 25 4 3 550 17,32 22,06 2948,47 196,56 11,43 198,82 33,23 2,97 3,52 0
S+300-55x93x25x15x3,5 300 93 93 25 15 55 15 25 3,5 3 550 15,17 19,32 2576,18 171,75 11,43 168,69 28,85 2,92 3,45 0
S+300-55x90x25x15x3 300 90 90 25 15 55 15 25 3 3 550 12,97 16,52 2191,44 146,1 11,41 135,97 24,1 2,84 3,36 0
S+300-55x88x25x15x2,5 300 88 88 25 15 55 15 25 2,5 3 550 10,82 13,79 1823,5 121,57 11,41 109,85 19,95 2,8 3,29 0
S+300-55x85x25x15x2 300 85 85 25 15 55 15 25 2 3 550 8,64 11,01 1447,57 96,5 11,39 82,53 15,56 2,72 3,2 0
S+290-55x95x25x15x3 290 95 95 25 15 55 15 25 3 3 550 12,97 16,52 2082,12 143,59 11,12 156,44 26,21 3,05 3,53 0
S+290-55x93x25x15x2,5 290 93 93 25 15 55 15 25 2,5 3 550 10,82 13,79 1732,58 119,49 11,12 126,4 21,67 3 3,47 0
S+290-55x90x25x15x2 290 90 90 25 15 55 15 25 2 3 550 8,64 11,01 1375,72 94,88 11,11 95,27 16,92 2,92 3,37 0
S+290-55x87x25x15x1,5 290 87 87 25 15 55 15 25 1,5 3 550 6,47 8,24 1024,03 70,62 11,09 67,3 12,4 2,84 3,27 0
S+280-55x95x25x15x2 280 95 95 25 15 55 15 25 2 3 550 8,64 11,01 1303,77 93,13 10,81 109,22 18,36 3,13 3,55 0
S+280-55x93x25x15x1,5 280 93 93 25 15 55 15 25 1,5 3 550 6,49 8,27 976,55 69,75 10,81 79,56 13,68 3,09 3,48 0
S+260-60x90x25x15x4 260 90 90 25 15 60 15 25 4 3 500 15,75 20,06 2020,61 155,43 9,91 175,58 31,14 2,92 3,36 0
S+260-60x88x25x15x3,5 260 88 88 25 15 60 15 25 3,5 3 500 13,79 17,57 1764,98 135,77 9,91 148,5 26,98 2,87 3,3 0
S+260-60x85x25x15x3 260 85 85 25 15 60 15 25 3 3 500 11,79 15,02 1500,5 115,42 9,89 119,61 22,55 2,79 3,2 0
S+260-55x90x25x15x4 260 90 90 25 15 55 15 25 4 3 500 15,75 20,06 2027,56 155,97 9,93 171,71 30,72 2,89 3,41 0
S+260-55x88x25x15x3,5 260 88 88 25 15 55 15 25 3,5 3 500 13,79 17,57 1771,07 136,24 9,93 145,18 26,61 2,84 3,34 0
S+260-55x85x25x15x3 260 85 85 25 15 55 15 25 3 3 500 11,79 15,02 1505,73 115,83 9,91 116,88 22,24 2,76 3,24 0
S+250-60x90x25x15x3 250 90 90 25 15 60 15 25 3 3 500 11,79 15,02 1411,31 112,9 9,6 138,14 24,57 3 3,38 0
S+250-60x88x25x15x2,5 250 88 88 25 15 60 15 25 2,5 3 500 9,84 12,54 1174,39 93,95 9,6 111,61 20,33 2,96 3,31 0
S+250-60x85x25x15x2 250 85 85 25 15 60 15 25 2 3 500 7,85 10,01 931,84 74,55 9,58 83,93 15,86 2,88 3,21 0
S+250-55x95x25x15x4 250 95 95 25 15 55 15 25 4 3 500 15,75 20,06 1905,97 152,48 9,63 197,33 33,43 3,1 3,6 0
S+250-55x93x25x15x3,5 250 93 93 25 15 55 15 25 3,5 3 500 13,79 17,57 1665,17 133,21 9,63 167,24 28,98 3,05 3,53 0
S+250-55x90x25x15x3 250 90 90 25 15 55 15 25 3 3 500 11,79 15,02 1416,14 113,29 9,61 135,13 24,25 2,97 3,43 0
S+250-55x88x25x15x2,5 250 88 88 25 15 55 15 25 2,5 3 500 9,84 12,54 1178,42 94,27 9,61 109,16 20,06 2,93 3,36 0
S+250-55x85x25x15x2 250 85 85 25 15 55 15 25 2 3 500 7,85 10,01 935,07 74,81 9,6 82,05 15,65 2,84 3,26 0
S+240-60x90x25x15x2 240 90 90 25 15 60 15 25 2 3 500 7,85 10,01 873,61 72,8 9,28 96,73 17,26 3,09 3,4 0
S+240-60x89x25x15x1,5 240 89 89 25 15 60 15 25 1,5 3 500 5,93 7,55 658,54 54,88 9,29 72,34 13,06 3,08 3,36 0
S+240-60x85x25x15x1,2 240 85 85 25 15 60 15 25 1,2 3 500 4,7 5,98 516,79 43,07 9,25 52,44 9,93 2,95 3,22 0
S+240-55x95x25x15x3 240 95 95 25 15 55 15 25 3 3 500 11,79 15,02 1326,8 110,57 9,3 154,95 26,35 3,18 3,62 0
S+240-55x93x25x15x2,5 240 93 93 25 15 55 15 25 2,5 3 500 9,84 12,54 1104,3 92,03 9,3 125,42 21,81 3,14 3,55 0
S+240-55x90x25x15x2 240 90 90 25 15 55 15 25 2 3 500 7,85 10,01 876,53 73,04 9,29 94,62 17,03 3,05 3,45 0
S+240-55x85x25x15x1,2 240 85 85 25 15 55 15 25 1,2 3 500 4,7 5,98 518,57 43,21 9,27 51,28 9,81 2,92 3,27 0
S+230-55x95x25x15x2 230 95 95 25 15 55 15 25 2 3 500 7,85 10,01 818,36 71,16 8,98 108,27 18,49 3,27 3,64 0
S+230-55x94x25x15x1,5 230 94 94 25 15 55 15 25 1,5 3 500 5,93 7,55 616,95 53,65 8,99 81,01 13,99 3,26 3,61 0
S+230-55x91x25x15x1,2 230 91 91 25 15 55 15 25 1,2 3 500 4,71 6,01 487,53 42,39 8,97 60,65 10,83 3,16 3,5 0
S+210-60x90x25x15x4 210 90 90 25 15 60 15 25 4 3 450 14,18 18,06 1211,55 115,39 8,08 174,58 31,37 3,07 3,43 0
S+210-60x88x25x15x3,5 210 88 88 25 15 60 15 25 3,5 3 450 12,42 15,82 1058,45 100,8 8,08 147,87 27,19 3,02 3,36 0
S+210-60x85x25x15x3 210 85 85 25 15 60 15 25 3 3 450 10,61 13,52 899,36 85,65 8,07 119,1 22,7 2,94 3,25 0
S+210-55x90x25x15x4 210 90 90 25 15 55 15 25 4 3 450 14,18 18,06 1215,87 115,8 8,09 170,56 30,94 3,03 3,49 0
S+210-55x88x25x15x3,5 210 88 88 25 15 55 15 25 3,5 3 450 12,42 15,82 1062,09 101,15 8,09 144,3 26,8 2,98 3,42 0
S+210-55x85x25x15x3 210 85 85 25 15 55 15 25 3 3 450 10,61 13,52 902,61 85,96 8,08 116,28 22,4 2,9 3,31 0
S+200-55x95x25x15x4 200 95 95 25 15 55 15 25 4 3 450 14,18 18,06 1120,61 112,06 7,77 195,52 33,67 3,25 3,69 0
S+200-55x90x25x15x3 200 90 90 25 15 55 15 25 3 3 450 10,61 13,52 832,43 83,24 7,76 134,12 24,43 3,11 3,51 0
S+200-55x88x25x15x2,5 200 88 88 25 15 55 15 25 2,5 3 450 8,86 11,29 692,85 69,29 7,76 108,41 20,22 3,07 3,44 0
S+200-55x85x25x15x2 200 85 85 25 15 55 15 25 2 3 450 7,07 9,01 549,46 54,95 7,75 81,48 15,75 2,98 3,33 0
S+195-55x93x25x15x3 195 93 93 25 15 55 15 25 3 3 450 10,64 13,55 800,56 82,11 7,6 145,63 25,71 3,24 3,64 0
S+195-55x90x25x15x2,5 195 90 90 25 15 55 15 25 2,5 3 450 8,84 11,26 661,73 67,87 7,59 114,57 20,92 3,16 3,52 0
S+195-55x88x25x15x2 195 88 88 25 15 55 15 25 2 3 450 7,09 9,03 528,58 54,21 7,59 88,74 16,59 3,11 3,45 0
S+195-55x86x25x15x1,5 195 86 86 25 15 55 15 25 1,5 3 450 5,33 6,78 396,02 40,62 7,59 64,6 12,37 3,07 3,38 0
S+195-55x85x25x15x1,2 195 85 85 25 15 55 15 25 1,2 3 450 4,27 5,44 316,99 32,51 7,6 50,98 9,88 3,05 3,34 0
Profile mm mm mm mm mm mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
  H A B C D E F G T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity
    • Different dimentions can be manufactured on demand.
    • Effective – section calculation is recommended according to load and steel class.
    • Effective inertia resistance and cross-sesction values can change according to load,steel frade,bear status
    • All calculations were made according to gravity center.
    • A,B and C cam manufacture with different dimensions.
