Hekim Profil

Z Profile

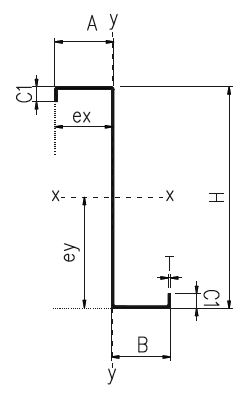

Z Profile Section

  • H Height
  • A Upper flange height
  • B Lower flange height
  • C1 Upper lip width
  • C2 Lower lip width
  • T Thickness

z-profil

  •   (mm)
  • H 100-400
  • A 50-100
  • B 50-100
  • C1 15-30
  • C2 15-30
  • T 1.00-4.00

z

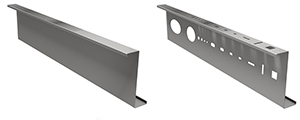

Z Profiles are produced in the requested sizes and measures by carrying out perforation and burr-free cutting in the requested measures and axises and inkjet marking on profiles on superior technology production lines, according to the project details and with personal packaging for persons and companies. All points on the profiles can be perforated by means of 3-D drawings of profiles downloaded to our computer controlled, fully automatic and high capacity machines. They can be produced in max. length of 16000 mm, max. 4,00 mm – st52 of hardness, max. 400mm of web measurement and max. 100 mm of flange measurement.

Z profile products are preferred as load bearing or auxiliary element in industrial constructions and steel buildings in construction, steel construction, light gayge steel construction, automative, electricity-electronics, metal, energy etc. sectors. The profiles are used under the name of Z profile, Z purlin profile, Z tape profile, roof profile, facade profile, light gauge steel construction profile, steel construction profile, heavy steel building profile, perforated Z profile, rolled Z profile, Special production construction profile, steel building profile, prefabricated construction profile, special production Z profile, prefabricated building profile, carcass profile, truss profile, steel roofing profile etc.

Z profiles are used as purlin, stringcourse and facade profile in heavy steel industrial buildings exposed to excessive loads and as load-bearing column, beam and roof truss in non-industrial steel constructions such as light gauge steel constructions, warehouses, hangars and barns.

covering and mechanical options can be applied on the materials according to the designed and drawn projects. The specifications of the materials can be preferred as hard or soft according to the loads on them and the thickness of the galvanized covering may change according to the required resistance to corrosion or paint over hot-rolled sheet can be applied, if required.
Z profiles provide price and material advantage upto 40% compared to constructions produced in heavy steel materials due to their very high load-bearing capacities. It also makes construction of steel buildings more reliable, fast and affordable by virtue of providing convenience in production, procurement, shipment and assembly.

Z profiles are more reliable and preferred on roofs, beams or columns as they do not have breakage of parts. Steel construction systems, essential in developed countries, is the most proper construction system especially for earthquake-prone countries. Besides this, they are preferred due to the fact they are easy to carry, add-remove parts to and from, are eco-friendly and recyclable.

Inner radius in all 90°corners:min. 3.00 mm
All dimensions are accordant with TS EN 1993-1-3 standards.
Material: S390GD + Z / S350GD + Z / DX51D + Z / S235 JR / S355 JR…

Z Profile Technical Details Table

  H A B C1 C2 T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity
Profile mm mm mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
Z400x100x27x4 400 100 100 27 27 4 3 625 19,61 24,99 5635,3 281,76 14,96 404,6 41,29 4,01 0 0
Z400x100x26x3,5 400 100 100 26 26 3,5 3 625 17,19 21,9 4949,47 247,47 14,98 354,55 36,09 4,01 0 0
Z400x100x24x3 400 100 100 24 24 3 3 625 14,72 18,75 4239,79 211,99 15 298,67 30,32 3,98 0 0
Z400x100x22x2,5 400 100 100 22 22 2,5 3 625 12,25 15,61 3530,39 176,52 15,01 244,42 24,75 3,95 0 0
Z400x100x21x2 400 100 100 21 21 2 3 625 9,82 12,51 2834,51 141,73 15,03 195,7 19,77 3,95 0 0
Z380x60x15x4 380 60 60 15 15 4 3 500 15,72 20,03 3576,51 188,24 13,3 74,23 12,8 1,92 0 0
Z380x58x15x3,5 380 58 58 15 15 3,5 3 500 13,73 17,49 3113,26 163,86 13,29 61,18 10,88 1,86 0 0
Z380x56x15x3 380 56 56 15 15 3 3 500 11,75 14,97 2654,54 139,71 13,27 49,32 9,05 1,81 0 0
Z380x55x15x2,5 380 55 55 15 15 2,5 3 500 9,82 12,51 2218,21 116,75 13,29 40,57 7,55 1,8 0 0
Z380x53x15x2 380 53 53 15 15 2 3 500 7,84 9,99 1765,17 92,9 13,27 30,46 5,86 1,74 0 0
Z360x70x15x4 360 70 70 15 15 4 3 500 15,72 20,03 3373,91 187,44 12,92 114,64 16,86 2,38 0 0
Z360x65x18x3,5 360 65 65 18 18 3,5 3 500 13,73 17,49 2927,86 162,66 12,89 91,99 14,54 2,28 0 0
Z360x65x17x3 360 65 65 17 17 3 3 500 11,8 15,03 2519,98 140 12,91 79 12,44 2,29 0 0
Z360x65x15x2,5 360 65 65 15 15 2,5 3 500 9,82 12,51 2095,04 116,39 12,91 63,99 10,04 2,26 0 0
Z360x60x18x2 360 60 60 18 18 2 3 500 7,84 9,99 1661,68 92,32 12,88 46,57 7,89 2,16 0 0
Z340x75x20x4 340 75 75 20 20 4 3 500 15,72 20,03 3134,92 184,41 12,45 159,53 21,85 2,81 0 0
Z340x75x18x3,5 340 75 75 18 18 3,5 3 500 13,73 17,49 2739,03 161,12 12,46 136,22 18,6 2,78 0 0
Z340x75x17x3 340 75 75 17 17 3 3 500 11,8 15,03 2357,82 138,7 12,48 116,88 15,9 2,78 0 0
Z340x70x20x2,5 340 70 70 20 20 2,5 3 500 9,82 12,51 1948,21 114,6 12,45 89,82 13,06 2,67 0 0
Z340x70x18x2 340 70 70 18 18 2 3 500 7,84 9,99 1556,33 91,55 12,46 70,17 10,17 2,65 0 0
Z320x85x20x4 320 85 85 20 20 4 3 500 15,72 20,03 2903,71 181,48 11,99 225,06 27,12 3,34 0 0
Z320x85x18x3,5 320 85 85 18 18 3,5 3 500 13,73 17,49 2538,36 158,65 12 192,45 23,12 3,3 0 0
Z320x80x22x3 320 80 80 22 22 3 3 500 11,8 15,03 2169,33 135,58 11,98 157,38 20,05 3,23 0 0
Z320x80x20x2,5 320 80 80 20 20 2,5 3 500 9,82 12,51 1806,62 112,91 11,99 128,4 16,3 3,2 0 0
Z320x80x18x2 320 80 80 18 18 2 3 500 7,84 9,99 1444 90,25 12 100,44 12,71 3,17 0 0
Z300x88x26x4 300 88 88 26 26 4 3 500 15,66 19,95 2617,14 174,48 11,4 281,54 32,74 3,74 0 0
Z300x88x25x3,5 300 88 88 25 25 3,5 3 500 13,73 17,49 2301,88 153,46 11,43 246,85 28,62 3,74 0 0
Z300x88x24x3 300 88 88 24 24 3 3 500 11,8 15,03 1983,18 132,21 11,45 212 24,51 3,74 0 0
Z300x88x22x2,5 300 88 88 22 22 2,5 3 500 9,82 12,51 1652,93 110,2 11,47 173,33 19,98 3,71 0 0
Z300x88x20x2 300 88 88 20 20 2 3 500 7,84 9,99 1322,23 88,15 11,49 135,91 15,62 3,68 0 0
Z300x88x19x1,5 300 88 88 19 19 1,5 3 500 5,9 7,51 996,52 66,43 11,51 102,04 11,7 3,68 0 0
Z280x65x17x4 280 65 65 17 17 4 3 414 13,02 16,59 1769,23 126,37 10,27 98,91 15,7 2,43 0 0
Z280x63x17x3,5 280 63 63 17 17 3,5 3 414 11,37 14,48 1540,23 110,02 10,26 81,95 13,38 2,37 0 0
Z280x62x17x3 280 62 62 17 17 3 3 414 9,77 12,45 1324,92 94,64 10,28 69,44 11,48 2,35 0 0
Z280x60x17x2,5 280 60 60 17 17 2,5 3 414 8,13 10,36 1098,41 78,46 10,27 54,7 9,31 2,29 0 0
Z280x59x17x2 280 59 59 17 17 2 3 414 6,52 8,31 881,86 62,99 10,28 43,24 7,46 2,28 0 0
Z260x75x17x4 260 75 75 17 17 4 3 414 13,02 16,59 1607,96 123,69 9,79 147,38 20,19 2,96 0 0
Z260x70x19x3 260 70 70 19 19 3 3 414 9,77 12,45 1200,54 92,35 9,78 102,1 14,9 2,85 0 0
Z260x70x17x2,5 260 70 70 17 17 2,5 3 414 8,13 10,36 999,97 76,92 9,8 82,97 12,07 2,82 0 0
Z260x70x15x2 260 70 70 15 15 2 3 414 6,49 8,27 799,29 61,48 9,81 64,62 9,37 2,79 0 0
Z260x65x19x1,5 260 65 65 19 19 1,5 3 414 4,88 6,22 597,06 45,93 9,79 45,71 7,11 2,71 0 0
Z240x73x21x4 240 73 73 21 21 4 3 400 12,52 15,95 1338,24 111,52 9,11 151,89 21,39 3,07 0 0
Z240x73x20x3,5 240 73 73 20 20 3,5 3 400 10,98 13,99 1178,52 98,21 9,13 133,18 18,69 3,07 0 0
Z240x70x21x3 240 70 70 21 21 3 3 400 9,4 11,97 1003,33 83,61 9,12 107,48 15,69 2,98 0 0
Z240x73x16x2,5 240 73 73 16 16 2,5 3 400 7,81 9,96 841,91 70,16 9,17 90,5 12,61 3,01 0 0
Z240x73x15x2 240 73 73 15 15 2 3 400 6,27 7,99 677,61 56,47 9,19 72,46 10,06 3,01 0 0
Z240x70x16x1,5 240 70 70 16 16 1,5 3 400 4,7 5,98 505,06 42,09 9,18 51,32 7,41 2,93 0 0
Z240x70x15x1,2 240 70 70 15 15 1,2 3 400 3,76 4,79 404,48 33,71 9,19 40,63 5,86 2,91 0 0
Z220x68x20x3 220 68 68 20 20 3 3 375 8,78 11,19 796,8 72,44 8,4 96,93 14,58 2,93 0 0
Z220x68x19x2,5 220 68 68 19 19 2,5 3 375 7,34 9,36 668,72 60,79 8,43 80,98 12,13 2,93 0 0
Z220x68x17x2 220 68 68 17 17 2 3 375 5,86 7,47 535,3 48,66 8,45 63,19 9,43 2,9 0 0
Z220x68x16x1,5 220 68 68 16 16 1,5 3 375 4,41 5,62 404,22 36,75 8,47 47,48 7,06 2,9 0 0
Z220x68x15x1,2 220 68 68 15 15 1,2 3 375 3,53 4,5 323,82 29,44 8,48 37,59 5,58 2,89 0 0
Z200x64x17x4 200 64 64 17 17 4 3 333 10,44 13,31 777,43 77,74 7,59 94,7 15,27 2,65 0 0
Z200x64x16x3,5 200 64 64 16 16 3,5 3 333 9,17 11,68 685,43 68,54 7,61 82,99 13,33 2,65 0 0
Z200x60x18x3 200 60 60 18 18 3 3 333 7,84 9,99 581,19 58,12 7,59 65,44 11,19 2,55 0 0
Z200x60x16x2,5 200 60 60 16 16 2,5 3 333 6,52 8,31 484,64 48,46 7,61 53,04 9,03 2,52 0 0
Z200x60x15x2 200 60 60 15 15 2 3 333 5,24 6,67 390,67 39,07 7,64 42,52 7,21 2,52 0 0
Z200x57x16x1,5 200 57 57 16 16 1,5 3 333 3,92 4,99 290,67 29,07 7,62 29,68 5,28 2,44 0 0
Z200x57x15x1,2 200 57 57 15 15 1,2 3 333 3,14 4 232,92 23,29 7,64 23,49 4,16 2,42 0 0
Z200x55x16x1 200 55 55 16 16 1 3 333 2,61 3,32 192,74 19,27 7,62 18,65 3,42 2,37 0 0
Z180x59x15x4 180 59 59 15 15 4 3 300 9,38 11,95 565,03 62,78 6,82 70,7 12,4 2,41 0 0
Z180x56x15x3 180 56 56 15 15 3 3 300 7,04 8,97 423,68 47,08 6,84 49,28 9,04 2,33 0 0
Z180x54x15x2,5 180 54 54 15 15 2,5 3 300 5,85 7,46 351,04 39 6,83 38,57 7,31 2,27 0 0
Z180x53x15x2 180 53 53 15 15 2 3 300 4,7 5,99 282,34 31,37 6,85 30,45 5,86 2,25 0 0
Z180x51x15x1,5 180 51 51 15 15 1,5 3 300 3,52 4,48 210,51 23,39 6,85 21,4 4,26 2,18 0 0
Z180x50x15x1,2 180 50 50 15 15 1,2 3 300 2,82 3,59 168,18 18,69 6,85 16,63 3,37 2,15 0 0
Z160x69x15x4 160 69 69 15 15 4 3 300 9,38 11,95 475,3 59,41 6,26 109,97 16,41 3,01 0 0
Z160x68x15x3,5 160 68 68 15 15 3,5 3 300 8,24 10,49 418,41 52,3 6,27 95,27 14,38 2,99 0 0
Z160x66x15x3 160 66 66 15 15 3 3 300 7,04 8,97 357,12 44,64 6,28 77,55 12,02 2,92 0 0
Z160x64x15x2,5 160 64 64 15 15 2,5 3 300 5,85 7,46 296,3 37,04 6,28 61,3 9,77 2,86 0 0
Z160x63x15x2 160 63 63 15 15 2 3 300 4,7 5,99 238,48 29,81 6,29 48,52 7,83 2,84 0 0
Z160x61x15x1,5 160 61 61 15 15 1,5 3 300 3,52 4,48 178,05 22,26 6,3 34,47 5,72 2,77 0 0
Z160x60x15x1,2 160 60 60 15 15 1,2 3 300 2,82 3,59 142,35 17,79 6,3 26,91 4,53 2,74 0 0
Z160x60x15x1 160 60 60 15 15 1 3 300 2,36 3 119,42 14,93 6,31 22,72 3,82 2,75 0 0
Z140x75x20x4 140 75 75 20 20 4 3 300 9,44 12,03 381,11 54,44 5,59 159,42 21,84 3,61 0 0
Z140x75x17x3 140 75 75 17 17 3 3 300 7,09 9,03 290,54 41,51 5,64 116,83 15,9 3,58 0 0
Z140x70x20x2,5 140 70 70 20 20 2,5 3 300 5,89 7,51 238,3 34,04 5,61 89,79 13,06 3,45 0 0
Z140x70x18x2 140 70 70 18 18 2 3 300 4,7 5,99 191,74 27,39 5,64 70,16 10,17 3,41 0 0
Z140x70x17x1,5 140 70 70 17 17 1,5 3 300 3,54 4,51 145,39 20,77 5,67 52,72 7,61 3,41 0 0
Z140x70x16x1,2 140 70 70 16 16 1,2 3 300 2,83 3,61 116,79 16,68 5,69 41,77 6,02 3,4 0 0
Z120x50x15x1,5 120 50 50 15 15 1,5 3 238 2,79 3,55 80,12 13,35 4,74 20,31 4,12 2,39 0 0
Z120x50x15x1,2 120 50 50 15 15 1,2 3 238 2,25 2,87 64,89 10,81 4,76 16,61 3,36 2,41 0 0
Z120x50x15x1 120 50 50 15 15 1 3 238 1,89 2,4 54,54 9,09 4,77 14,07 2,84 2,42 0 0
Z100x50x15x4 100 50 50 15 15 4 3 202 6,3 8,03 124,4 24,88 3,89 44,36 9,24 2,32 0 0
Z100x50x15x3,5 100 50 50 15 15 3,5 3 202 5,6 7,13 111,5 22,3 3,92 40,44 8,38 2,36 0 0
Z100x50x15x2,5 100 50 50 15 15 2,5 3 212 4,13 5,26 83,52 16,7 3,96 31,3 6,42 2,43 0 0
Z100x50x15x2 100 50 50 15 15 2 3 212 3,35 4,27 68,4 13,68 3,99 26,04 5,32 2,46 0 0
Z100x50x15x1,5 100 50 50 15 15 1,5 3 217 2,55 3,25 52,51 10,5 4,01 20,31 4,12 2,5 0 0
Z100x50x15x1,2 100 50 50 15 15 1,2 3 217 2,06 2,63 42,58 8,52 4,03 16,61 3,36 2,51 0 0
Profile mm mm mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
  H A B C1 C2 T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity
    • Different dimentions can be manufactured on demand.
    • Effective – section calculation is recommended according to load and steel class.
    • Effective inertia resistance and cross-sesction values can change according to load,steel frade,bear status
    • All calculations were made according to gravity center.
    • A,B and C cam manufacture with different dimensions.
